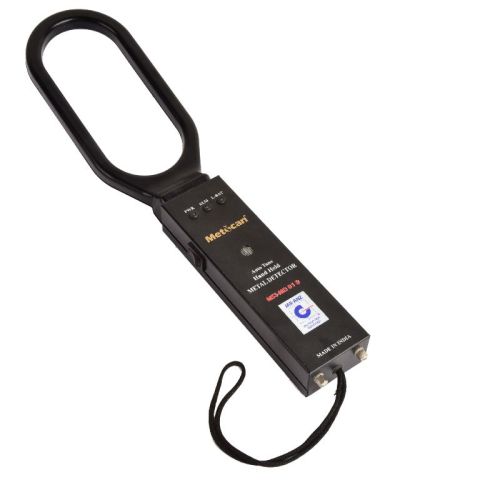

Hand Held Metal Detector

General Features

• Designed for low enforcement security & Polocing.
• Detect all Metals both ferrous and non-ferrous.
• Auto balancing with push button operation.
• Highly sensitive & auto tune to every application.

Technical Specifications

Working temperature: 10 c to+50c 0-95%HR

DETECTION : Detects all metals , both ferrous and non-ferrous

INDICATION : (a) on & low battery through separate LED.

                      : (b) Auto- Visual indication through Red Colour Led and Piezo buzzer.

CONSTRUCTION: ABS moulded search head and powder coated metal cabinet.

OVER ALLDIM : Length 390 mm

                        : Width 50 mm Big

                         : Hight 35 mm

SENSITIVITY : Paper Pin (1cm)

POWER   : 1.2 x 4 NI-CD Rechargeable Battery

WEIGHT : 500gm

General Features:

• Designed for low enforcement security & Policing.
• Detect all Metals both ferrous and non-ferrous.
• Auto balancing with push button operation.
• Highly sensitive & auto tune to every application.

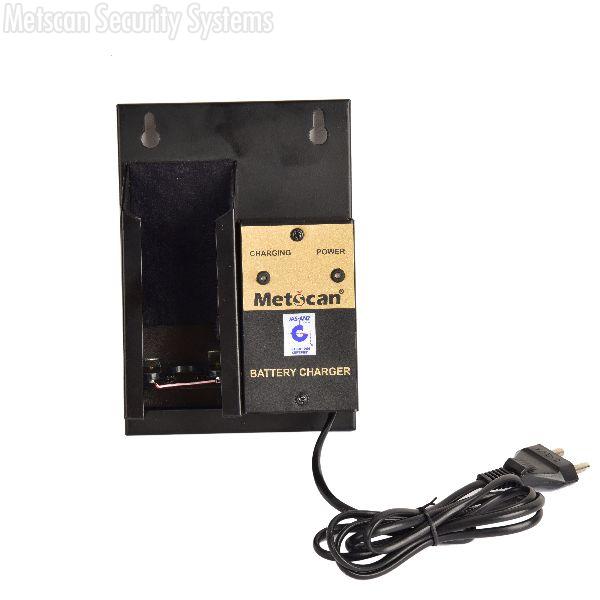

• SMPS Power Supply Wall Mount Charger
• Working temperature  -10 degree C to +50 degree C0 – 95% RH

DETECTION: Detects all metals, both ferrous and non-ferrous

INDICATION: (a) On Green LED & low battery through Yellow LED

                    (b) Audio-Visual indication through Red Color LED and Piezo buzzer

CONSTRUCTION: ABS molded search head and powder coated Metal cabinet

OVER ALL DIM.: Length 390 mm

                        Width 50 mm

                        Height 35 mm

SENSITIVITY: Paper Pin     (1 cm)

POWER: 1.2V x 4 Ni-cad rechargeable cells

WEIGHT: 450 gm

General Features

• Designed for low enforcement security & Polocing.
• Detect all Metals both ferrous and non-ferrous.
• Auto balancing with push button operation.
• Highly sensitive & auto tune to every application.
• Working temperature-10 c to+50c 0-95%HR

Technical Specifications

DETECTION        :  Detects all metals , both ferrous and non-ferrous

INDICATION       :  (a) on & low battery through separate LED.

                        :  (b) Auto- Visual indication through Red Colour Led and Piezo buzzer.

CONSTRUCTION : ABS moulded search head and powder coated metal cabinet.

 OVER ALL DIM    : Length 390

                         : Width 50 mm (Metal Body)

                         : Width 95 mm (Search Head)

                         : Height 20 mm

SENSITIVITY       : Paper Pin (1cm)

BATTERY             : (a) Rechargeable 9 volt 210mAh Ni-MH battery.

                            (b) Battery Back-up: 40 hours

WEIGHT              : 400gm (Metal Body)

Model Metscan-MSS MD-02 Super Scanner

General Features:-

• Suitable for a wide of scurity applications and exporters.
• Metscan-02s highly sensitivity allow a search to be non-intensive and hand off by minimizing physical contract with the object.
• Metscan-02s higly sensitivity is invaluable in anti theft of applications where small metal objects must be protected, jewelry electronics products,computer processors, tools etc.can be detected.
• Suitable to scan the industries quality assurance company like garments, carpet & plastic sheet.

Technical Specifications

 DETECTS:

Pistol, 25 cal. at : 8” (200 mm)

Mini Revolver, 22 cal. at:6” (150 mm)

Razor Blade at : 2” (50 mm)

Hat Pin at     : 1” (25 mm)

INDICATION

Single LED for multiple indication.

(1) Normal Light for ON Indication

(2) Brighter Light ON metal detection.

(3) Flashing light for low battery indication.

Material:- Height impact resistant ABS Case.

Battery :-

             (a) Battery Life of over 80 Hours with  9volt 210mAh Ni-MH Rechargeable Battery.

             (b) Battery life of over 300 hour with 9 volt Duracell alkaline battery.

Features:-

• Single push button operation.
• Large search head for extra coverage.
• Instant response to all metals.
• Automatic tuning ensure equal results on wide range of metals

OVER ALL DIMENSION

(a) Length : 382 mm max.

(b) Width : 38 mm

(c) Height : 34 mm

DIMENSION

(a) Outer Dia : 140 mm

(b) Inner Dia : 80 mm

(c) Weight : 280g (With Battery)

                : 240g (Without Battery)

OPERATING TEMP

-15 to +45 degrees centigrade

General Features:

• Designed for low enforcement security & Policing.
• Detect all Metals both ferrous and non-ferrous.
• Auto balancing with push button operation.
• Highly sensitive & auto tune to every application.
• Working temperature-10 c to+50c 0-95%HR

DETECTION: Detects all metals , both ferrous and non-ferrous

 DETECTION RANGE: Minimum Pin from 1” distance.

 INDICATION : (a) Solid Red LED : AL - target detected

                         (b) Solid Green LED : Pw - power on

                         (c) Solid Yellow LED : BT - low battery indicator

 ALARM SIGNAL : (a) Sound mode: Buzzer with red LED

                            (b) Vibration mode: Vibrator with red LED

 CONTROL : 3 WAY SWITCH

(a) Forward position : V- vibration on

(b) Center position : O - power off

(c) Back position : S - sound on

 MATERIAL : Non-Breakable / Scratch Proof ABS Material

 BATTERY : (a) Rechargeable 1.2volt x 4 600mAh “AAA”

                 Eveready Ni-MH battery or 9 volt 170 mAh

                 Ni-MH Rechargeable Battery

                (b) Battery Back-up : 40 hours

 DIMENSION : (a) Weight : 290g

                       (b) Length : 14.76”(375) mm

                       (c) Width : 3.03” (77) mm

                       (d) Thickness : 1.37” (35 mm)

 OPERATING TEMP :-15 to +45 degrees centigrade Z
